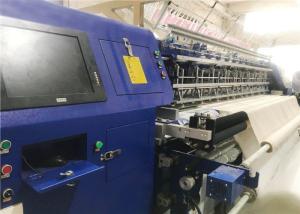

128 Inches Multi Needle Quilting Machine With Japan Motor

Name: 128 Inches Multi Needle Quilting Machine With Japan Motor
Brand: Yuxing
Price: 1 USD

China 128 Inches Multi Needle Quilting Machine With Japan Motor wholesale

Brand Name : Yuxing

Model Number : YXS-128-2/3D

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 30 SETS/MONTH

Delivery Time : 20 Days

Packaging Details : Export packing

Max sewing speed : 1200 R/MIN

Dimension(l*w*h) : 393.5*175*170 CM

Weight : 6600 KG

After-sales service provided : Online video

Warranty : One Year

Quilting width : 128 inches

Voltage : 380V

Number of head : Multi needle

Contact Now

128 Inches Computerized Shuttle Multi-Needle Quilting Machines with Japan motor

Function:

1. Adopt the advanced computer and mechanistic technology.

2. Needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled by lube.

3. Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.

4. Saddling rack and roller are driven by servo equipment.

5. Principal axis uses the frequency conversion device.

6. Adjust speed by computer, the speed can reach 1200r/min,the stitch can be set between 2mm-6mm.

7. 360°random quilting and limitless multi-span and independent quilting.

8. Compensation function,an effective solution for looping pattern with thick material.

9. Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.

10. The infrared system ,make your operate more safe.

11. Pattern editing is easy to learn.

12. Ringing notice when start machine.

	YXS-128-2/3D
Dimension(L×W×H)	559017501700
Quantity of needle bar	3
Quilting width	3200
Space between needle rows	76.2(3') / 152.4(3'+3')
Space between needles	25.4
X-axis movement	254
Thickness of quilting	≤50
Stitch	2~8
Speed of operation(m/H)	10~240
Model of needle	16#,19#
Rolling speed	500~1200
Total power required	7.5KW
Voltage	380V/50HZ; 220V/60HZ
Gross weight	6600kg

128 Inches Multi Needle Quilting Machine With Japan Motor

Appropriate to: comforter, quilts, bag, sleeping-bag, nightgown, and house adornments.

Pattern show

128 Inches Multi Needle Quilting Machine With Japan Motor
